| Active accuracy | Class0.5S (IEC 62053-22) Class 2, IEC 62053-23 |
| Neutral Measurement | None |
| Rated voltage Un(V) | 3x240V |
| Working voltage range | 3×63.5/110V~3×240/416V: 0.7Un – 1.2Un |
| Rated frequency(Hz) | 50Hz |
| Starting current (mA) | 0.4%Ib |
| Basic current Ib(A) | 5A |
| Max. current Imax(A) | 10A |
| Active pulse constant (imp/kWh) | 10000 |
| Power consumption in voltage circuit(W/VA) | ≦2W/10VA |
| Power consumption in current circuit(VA) | ≦0.5 VA |
| Service life of the meter | 10 years |

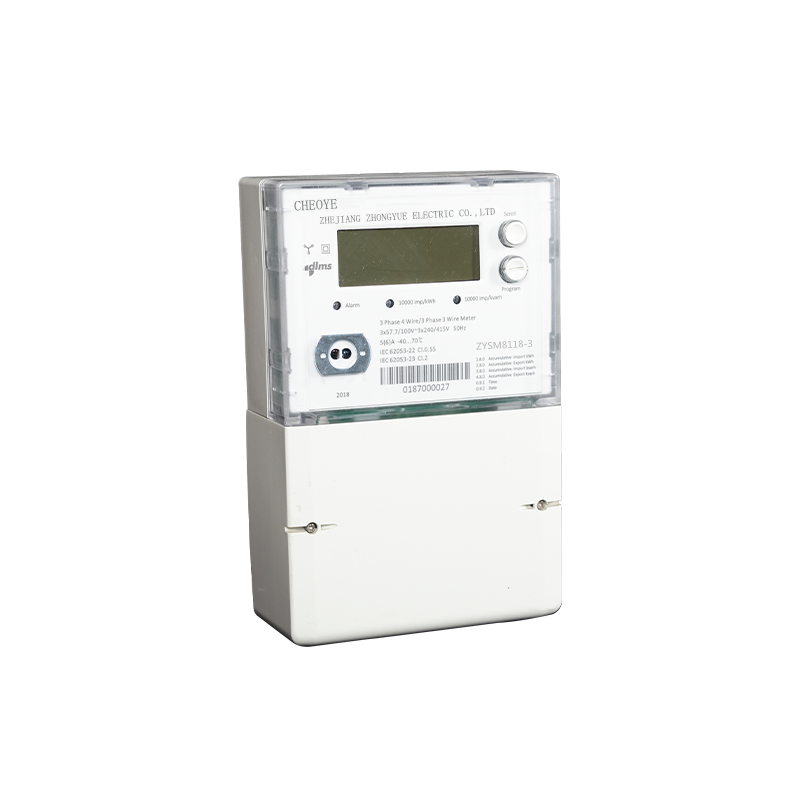

ZYSM8118-3 3P CT-CT/VT Meter
The meters have the following basic characteristics:
■ Recording of active energy and Reactive energy in one or more
tariffs
■ Display of data with a liquid crystal display (LCD) and backlit
Standard Comments
■ Compliance with accuracy classes 0.5S according to IEC
■ Correct measurement even with the failure of individual phases or
when used in two- or single-phase networks
■ Wide range of measurement from starting current to maximum
current
■ Serial interface with optical for meter data readout and
configuration
■ Pulse output for transmission of constant pulses
■ Load profile, Billing and Max.Demand function available
■ Detection of strong magnetic, meter cover opening, terminal cover
opening
